Description

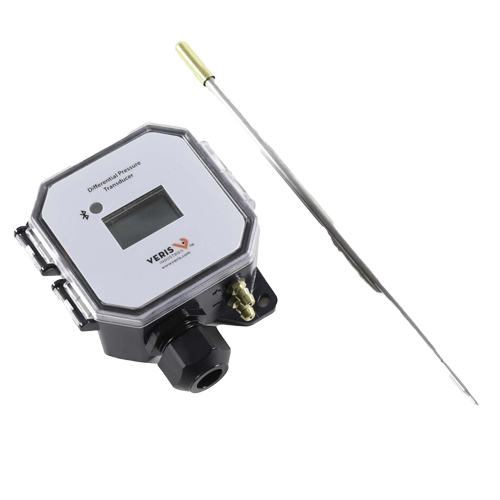

The Veris PX3ULN05 is a universal dry media differential pressure and air velocity transducer designed for advanced HVAC monitoring and control applications. With a measurement range of 0–10 inches water gauge (WC), this unit is suitable for duct pressure, airflow, and velocity measurement in commercial and industrial systems. It features Bluetooth connectivity for wireless configuration and commissioning, along with an integrated LCD display for local readout. The PX3ULN05 supports both differential pressure and calculated air velocity measurements and is NIST certified for traceable accuracy. Its 3-wire configuration and dual-output capability (4–20 mA / 0–10 V) allow seamless integration with building automation systems (BAS).
Key Features:
- Measures differential pressure and air velocity in HVAC systems
- 0–10" WC pressure range for duct and airflow applications
- Bluetooth connectivity for wireless setup and configuration
- Integrated LCD display for local monitoring
- NIST certified for traceable accuracy
- Dual outputs: 4–20 mA and 0–10 V for BAS integration
- 3-wire configuration for flexible installation
- Ideal for duct pressure, airflow verification, and system balancing
