Description

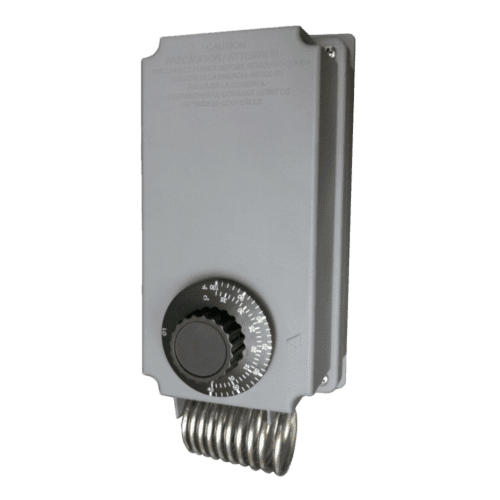

TW155A Washdown/Corrosion Resistant Line Voltage Thermostat

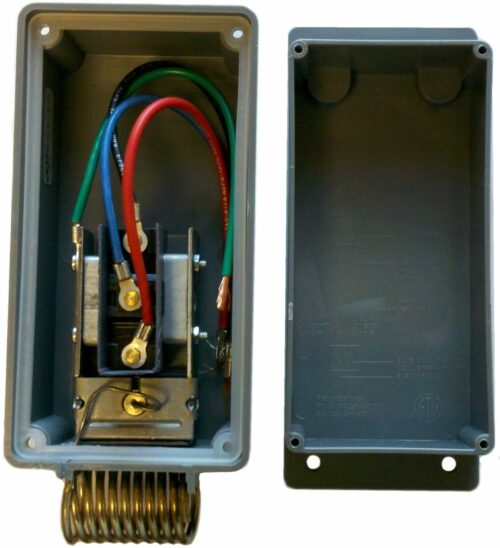

The TW155A thermostat is intended for use in wash down and mildly corrosive atmospheres for control of heating or cooling equipment. The TW155A is designed for use as an operating or regulating control only. Where control failure could result in personal injury or loss of property, an approved backup temperature limit control or an advisory alarm system should be used to warn of control failure. HEAT or COOL SPDT. The thermostat utilizes a two piece molded plastic enclosure with all exposed metal hardware being stainless steel. The thermostat, adjusting knob and sensing coil are attached to the enclosure cover, allowing the box to be mounted and the wiring to be connected with out damaging the control. Wiring will be at the bottom of the enclosure. Temperature range from 40 to 110 °F.
ELECTRICAL RATINGS 22 AMP @ 125/250/277 Vac 3/4 HP @ 125 Vac 1 1/2 HP @ 250/277 Vac
