Description

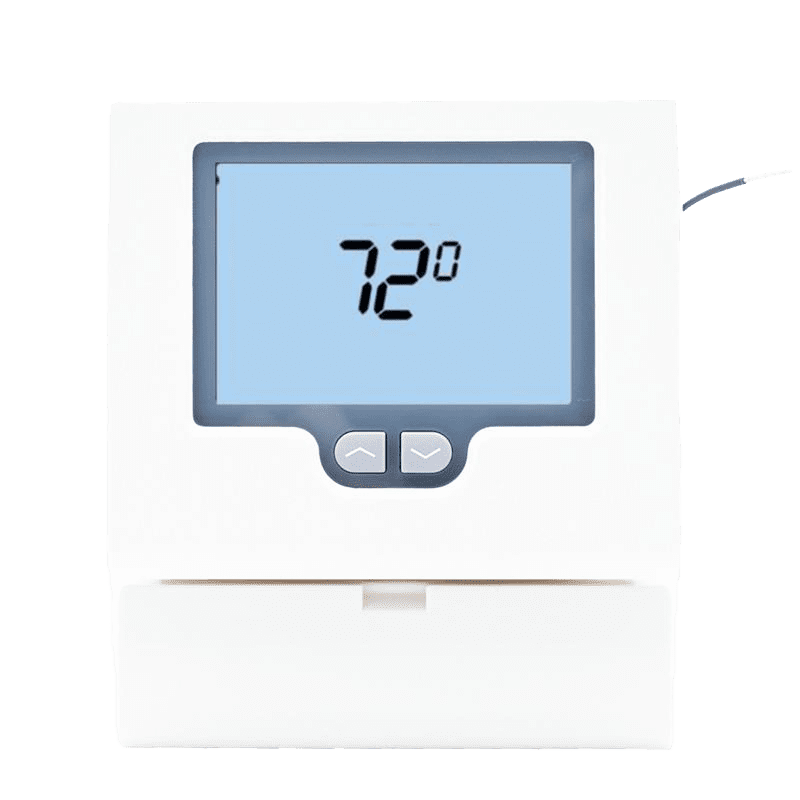

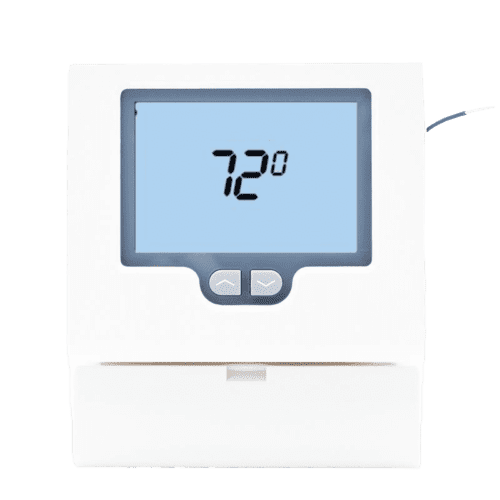

The Z-2000-T thermostat is designed exclusively to work with the Z-2000 modulating zoning system, and the Zone One stand-alone damper/VAV diffuser system, both from Jackson Systems. This thermostat can be configured to modulate the damper actuator, or provide 2-position control. It is a relatively small, unobtrusive thermostat that is perfect for offices, schools, and any light commercial application.
The WEB-Z2000T is the Web Comfort version of the standard Z-2000-T. The two thermostats operate identically, but WEB-Z2000T can be incorporated into the proprietary, light building automation system – Web Comfort.
- Input Voltage: 24VAC 50/60 Hz +/- 15%
- Relay Rating: 24VAC @ 1 amp maximum per relay
- Operating Temperature: 32-122 degrees Fahrenheit
- Operating Relative Humidity: 0-95% (non-condensing)
- Temperature Sensors: 10K NTC Type II
- Control Range: 38-96 degrees Fahrenheit
