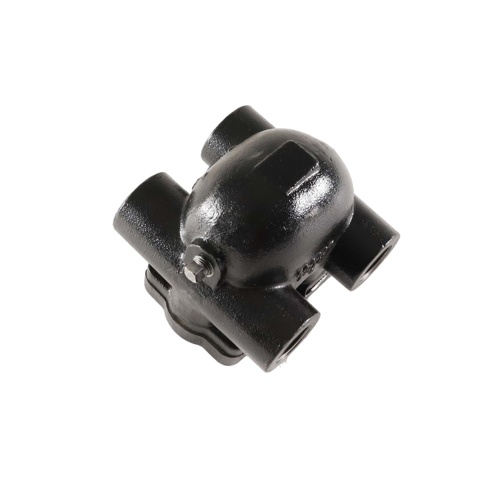

Xylem-Hoffman Specialty 404218 1″ NPT 175 PSI Cast Iron F&T Steam Trap FT175H-4

Description

Xylem-Hoffman Specialty Series H Float & Thermostatic Steam Trap — Model FT175H-4 (SKU 404218)

The Xylem-Hoffman Specialty Series H Float & Thermostatic (F&T) Steam Trap is a proven, heavy-duty solution for continuous condensate drainage in steam heating and process systems. Combining a float mechanism for continuous liquid discharge with an integrated thermostatic air vent for automatic air and non-condensable gas removal, this trap ensures efficient steam system operation and helps prevent energy loss, water hammer, and corrosion.

Key Features

• Series H cast iron body construction for durability in demanding steam applications
• 1″ NPT connections for straightforward installation into standard steam piping
• 175 PSI maximum working pressure rating for high-pressure steam systems
• .106″ orifice size for precise condensate discharge control
• Integrated thermostatic air vent automatically purges air and non-condensable gases at startup and during operation
• Float mechanism provides continuous, modulating condensate drainage proportional to condensate load
• Model FT175H-4 — part of Hoffman Specialty’s trusted F&T steam trap lineup

Applications

• Steam heating systems in commercial and industrial buildings
• Unit heaters, heat exchangers, and coils
• Process steam equipment requiring reliable condensate removal
• Drip legs and steam distribution mains

Specifications

• Brand: Xylem-Hoffman Specialty
• SKU / Part Number: 404218
• Model: FT175H-4
• Series: H
• Body Material: Cast Iron
• Connection Size: 1″ NPT
• Maximum Working Pressure: 175 PSI
• Orifice Size: .106″
• Trap Type: Float & Thermostatic (F&T)
• Air Vent: Thermostatic
