Description

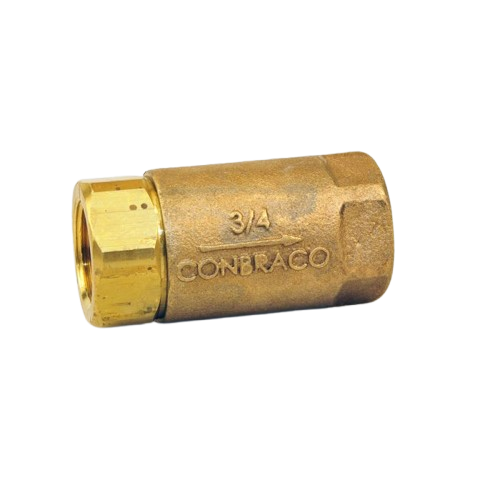

The Conbraco 61 104 01 is a rugged, spring-loaded ball-cone check valve designed to prevent reverse flow in liquid and steam systems. With a durable bronze body and a chemically resistant RPTFE ball, this check valve delivers reliable performance for a range of industrial and HVAC applications.
Key Features
- Connection Size: ¾″ female NPT inlet and outlet, making installation straightforward.
- Body Material: Made from high-quality bronze (ASTM B 584), offering excellent corrosion resistance and long service life.
- Ball Material: RPTFE (reinforced PTFE) ball-cone design provides chemical resistance and tight shutoff.
- Spring-Loaded & Center-Guided: Enables fast seating and ensures radial alignment—no special alignment required.
- Straight-Through Flow: Minimizes pressure drop and maintains flow efficiency.
-
Pressure Ratings:
- Cold Working Pressure (CWP): 400 psi (cold, non-shock)
- Steam Rating: 125 psi saturated steam at elevated temperatures.
- Cracking Pressure: Low opening pressure of ½ psi, ensuring responsiveness.
- Temperature Rating: Supports service up to 406°F, making it suitable for high-heat applications.
