Description

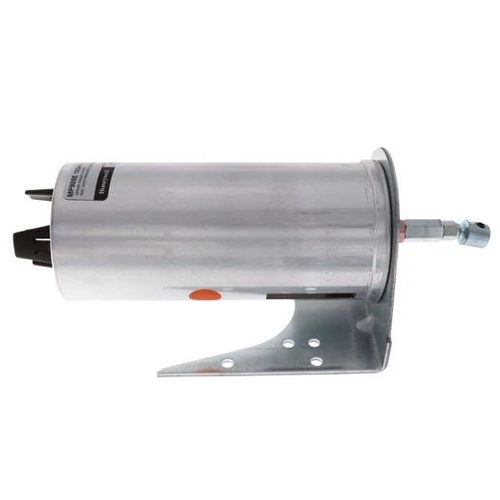

Achieve precise, dependable airflow control in your variable air volume (VAV) systems with the Honeywell MP909H1331. This medium-force pneumatic actuator, featuring a built-in positive positioner and a 10 psi spring range, delivers exceptional modulation and failsafe functionality.
Specifications:
- Air Connections: 1/8″ NPT, Dual Barbed fitting for 5/32″ or 1/4″ O.D. tubing
- Product Type: Actuator
- Actuator Type: Pneumatic
- Temperature Range (F): -28°F to 160°F
- Actuator Spring Range: 10 psi span
- Fail Safe Mode: Spring Return
- Stroke: 4″
- Max Pressure (PSI): 30
- Features: Includes External Mounting Bracket w/ Balljoint
