Description

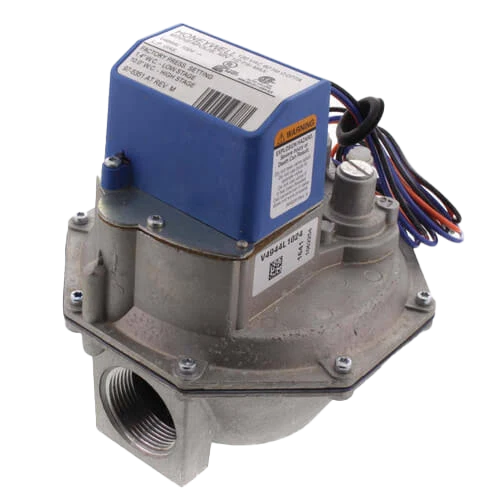

The Honeywell V4944L1024 is a rugged and reliable diaphragm gas valve engineered for dual-stage pressure regulation and safety shutoff. Designed for liquid propane (LP) systems, this valve combines precision control and fail-safe operation, making it ideal for atmospheric boilers, rooftop units, duct furnaces, and commercial water heaters.
Specifications:
- Valve Type: Rapid Opening, Two Stage
- Max Capacity (CFH): 1030
- Min Capacity (CFH): 310
- Capacity (CFH): 310 to 1030
- Pressure Rating: 1/2 psi
- Fuel Type: Propane
- Voltage: 120v
- Frequency: 60 Hz
- Max Temp (F): 150°F
- Min Temp (F): -40°F
- Temperature Range (F): -40°F to 150°F
- Electric Connection: 1/4″ Spade Terminal, 30″ leadwires and cover for electrical conduit connection provided.
- Size: 1-1/4″
