Description

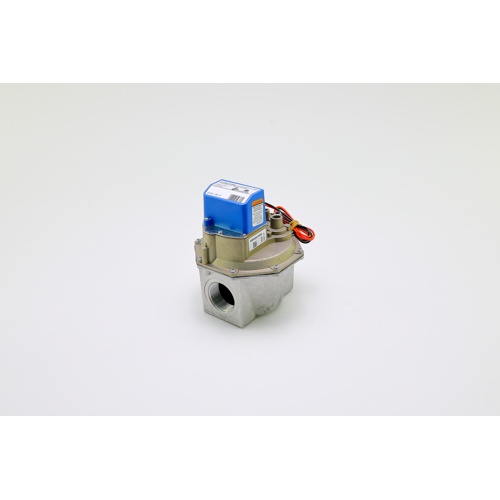

The Honeywell V8943A1038 is a reliable on/off diaphragm gas valve engineered for precise, safe gas flow control in commercial and residential heating applications. Designed to deliver rapid response and dependable shutoff, this valve is a trusted choice for OEM and replacement installations alike.
Key Features
- On/off diaphragm-style gas valve for precise flow control
- 24VAC operating voltage for compatibility with standard control circuits
- 1-1/2″ straight-through, non-offset body for straightforward inline installation
- High-capacity 2,300 CFH gas flow rating to support demanding heating loads
- Rapid opening operation with a maximum 6-second valve opening time
- Internal bleed design for clean, efficient operation
- 1/8″-27 NPT pilot tapping for easy pilot gas connection
- 1/2 PSI pressure rating for low-pressure gas systems
- Supports upright and horizontal mounting orientations for flexible installation
Specifications
- SKU: V8943A1038
- Brand: Honeywell
- Valve Type: On/Off Diaphragm Gas Valve
- Operating Voltage: 24VAC
- Inlet/Outlet Size: 1-1/2″
- Flow Capacity: 2,300 CFH
- Body Configuration: Straight Through, Non-Offset
- Pilot Tapping: 1/8″-27 NPT
- Pressure Rating: 1/2 PSI
- Mounting Position: Upright or Horizontal
- Opening Speed: Rapid Opening
- Maximum Valve Opening Time: 6 Seconds
- Bleed Type: Internal Bleed
Applications
The V8943A1038 is well-suited for use in commercial boilers, unit heaters, furnaces, and other gas-fired heating equipment requiring a dependable, fast-acting shutoff valve. Its internal bleed design and rapid opening capability make it ideal for systems where quick response and tight shutoff are critical to safe operation.
