Robertshaw STXH240S05 Mersen Split Phase 3-Wire Surge-Trap Surge Protection Device

BRAND: Robertshaw SKU: STXH240S05

$56.99

MSRP: $99.10
You save 42%

Mersen Split Phase 3-Wire Surge-Trap Protective Device

Free Shipping
Ships Tomorrow
Availability:

50 In Stock

Description

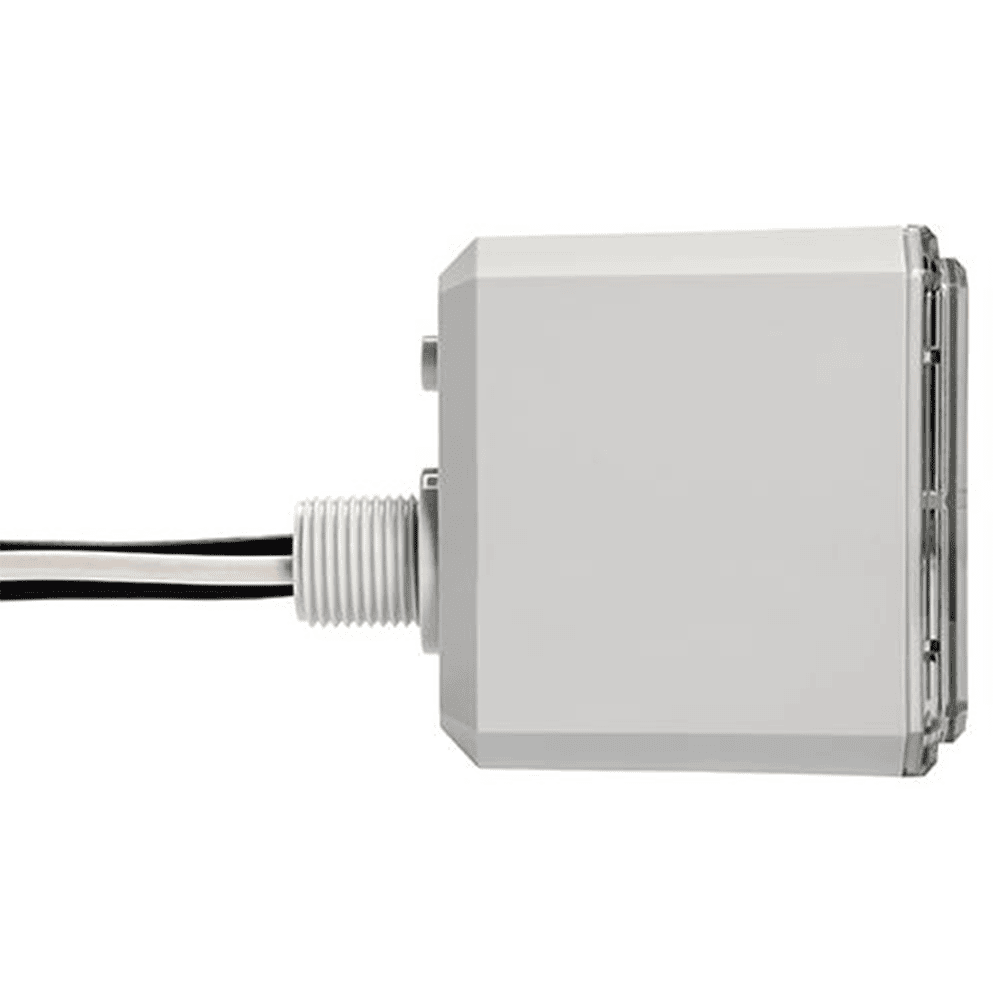

The Mersen STXH240S05 is a 120/240 VAC, 50/60Hz, Split Phase 3-Wire Surge-Trap Surge Protector. It will safeguard your residential A/C and furnace equipment. The Mersen Surge-Trap Series Surge Protection Devices (SPD) safeguards residential air conditioning (A/C) units including mini-splits, furnaces, and air handlers from costly voltage surge events, such as fluctuations in power often generated from inside a home or building, and from an outside source like lightening. Compact in size, the Surge-Trap Series provides Type 1 and Type 2 surge protection to help maintain safe, reliable A/C and furnace performance. The STXR models are flexible in both line or load installation applications for branch panel or individual equipment protection.

Applications
  • AC units / mini-splits / heat pumps
  • Furnaces / air handlers
  • Motors / ECM motors
  • Controls boards / transformers / relays / sensors
  • Refrigeration systems
Features
  • Designed with industry leading Mersen TPMOV® technology
  • Compact footprint designed to align easily with AC disconnect switches

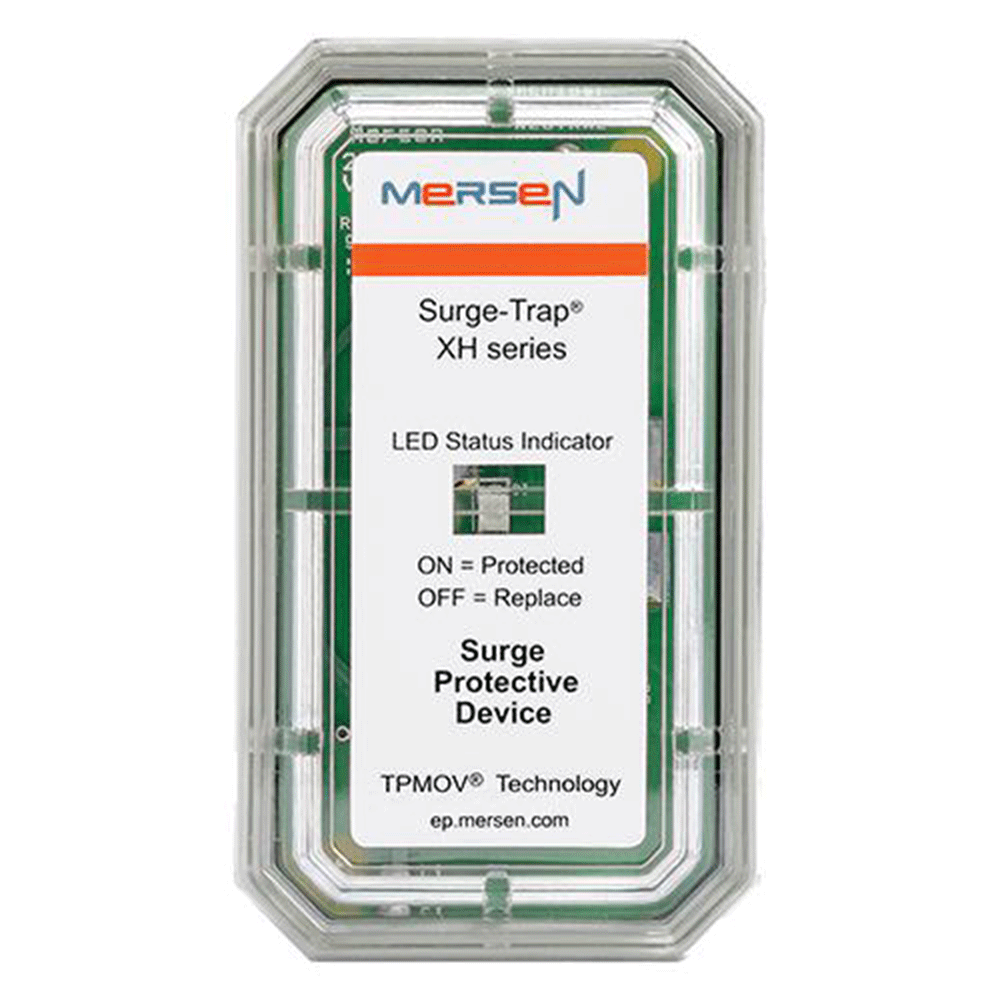

  • Easy to read LED status indicator; flashes Green to show SPD is On; or the LED will be Out indicating SPD should be replaced
  • NEMA 4X non-metallic enclosure for outdoor or indoor use
  • For use with ANSI/UL Type 1 or 2 SPD installations

Additional information

Wire Length

Pre-Wired 18", 10 AWG

Operating Temperature

Mounting Type

Warranty

UPC 782001472504
