Description

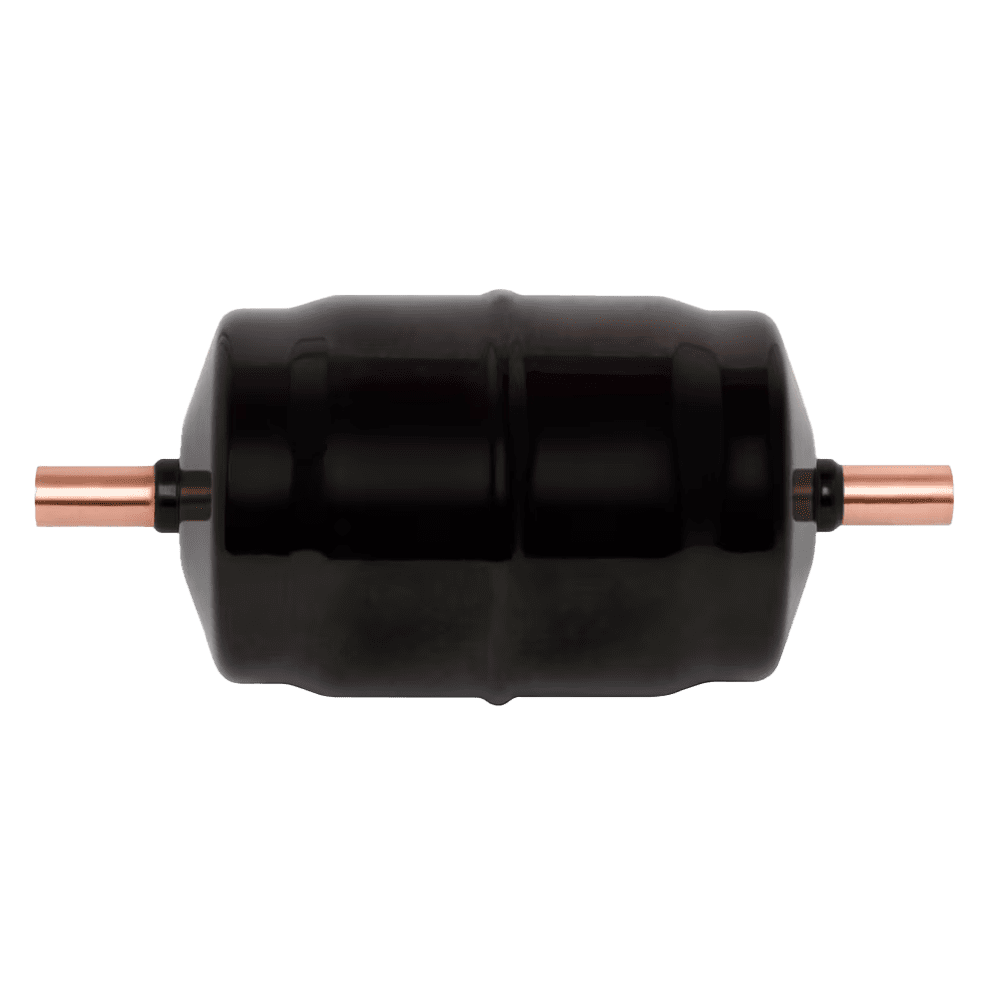

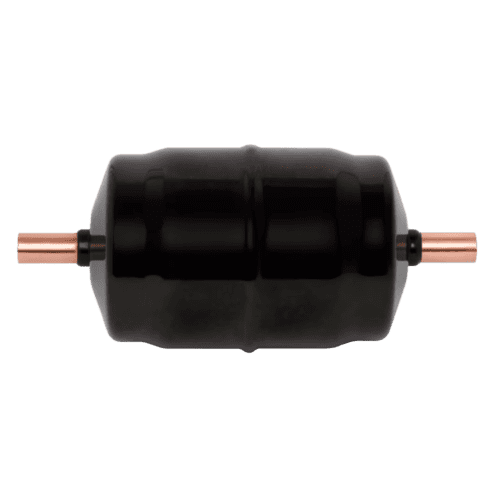

The Parker Type LLD core-style filter-driers provide control of the most harmful contaminants in HVAC&R systems. Moisture, acids, and solid debris are effectively captured to ensure the long life, efficiency, and capacity of today’s high-performance air-conditioning and refrigeration systems. With multiple sizes and fitting configurations, it is easy to find the right model for systems up to 20 tons.
Markets:
- Residential & Commercial HVAC
- Food Service Refrigeration
- Commercial Refrigeration
- Transportation Air-conditioning and Refrigeration
Features/Benefits:
- Complete contaminant control to protect and extend system life and ensure system reliability
- High performance desiccant package provides high water capacity & acid capacity
- Sizes from 3 cu. in. to 60 cu. in. and 1/4” to 1-1/8” fittings for use up to 20 tons cooling capacity
- SAE flare fittings, solid copper ODF fittings, and solid copper ODM fittings (ZoomLock compatible) available
- DSG models available that have an integrated liquid and moisture indicating sight glass to allow visual refrigerant examination
- Suitable for use with HCFC, HFC, HFO, and HC refrigerants
- UL Listed for 650 psig rated pressure for R-410A
Applications:
- Liquid line drying and filtering for solid contaminant removal
