Description

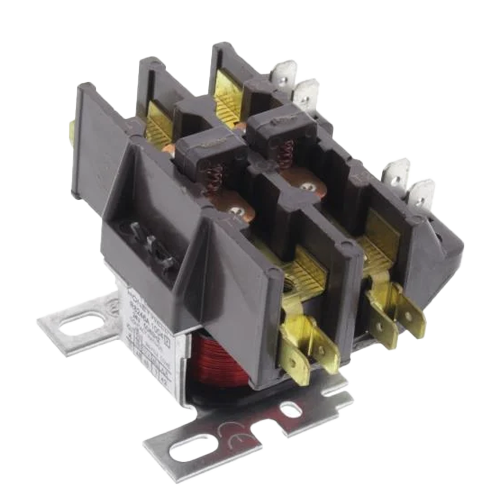

The Honeywell/Resideo R8246A1004/B is a 2-pole, low-voltage (24 VAC) electric heat contactor designed for reliable switching in electric heating applications. This contactor is ideal for controlling electric furnaces, baseboard heaters, and other heating equipment in residential and light commercial settings.
Specifications:
- Coil Rating Voltage: 24 V AC
- Coil Connection Size: No. 10, 1/4 in, 6 mm
- Coil Connection Type: Terminal Clamp Screw, Male Double Quick Connects
- Number of Poles: 2
- Product Height: 2.18 in, 55 mm
- Product Length: 3.31 in, 84 mm
- Product Width: 2.31 in, 59 mm
- Amperage: 30 A
