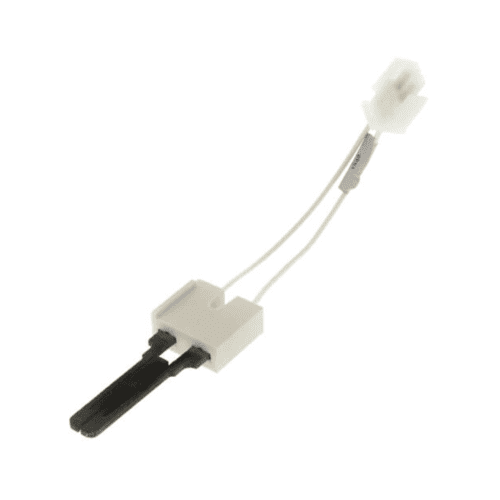

Robertshaw 41-408 5-1/2in Carbide Series Hot Surface Igniter

BRAND: Robertshaw SKU: 41-408

(1 customer review)

$16.99

MSRP: $73.40
You save 77%

Hot Surface Ignitor For Heating Systems

Description

The Robertshaw 41-408 Carbide Series Hot Surface Igniter is a dependable heating system ignitor for furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment.

This Hot Surface Igniter has a ceramic base of 1-1/4in wide and 1/2in thick. The wire leads measure 5-1/2in long.

The 41-408 Carbide Series Hot Surface Igniters are made of recrystalized silicon carbide with a high purity rating. This material combines physical and thermal strength while establishing stable electrical properties for this ignitor. Additionally, the lead wires are made out of 18-gauge nickel chrome that are metalized in place for maximum strength and electrical conductivity. These wires are also enclosed in high-temperature fiberglass for extra insulation and protection.

Each Hot Surface Ignitor in the Robertshaw 41-400 Series are designed to reach ignition temperatures within 17 seconds!

Features

  • High-Purity Recrystallized Silicon Carbide (Crystar™)
  • Reaches Ignition Temperature(s) within 17 Seconds
  • 18-Gauge Nickel Chrome Lead Wires
  • Lead wires are Enclosed in High-Temperature Fiberglass Insulation
  • Operates at 120V AC

Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC

Additional information

Lead Wire Length

5.25"

UPC 662013634735

Robertshaw Hot Surface Ignitor Overview

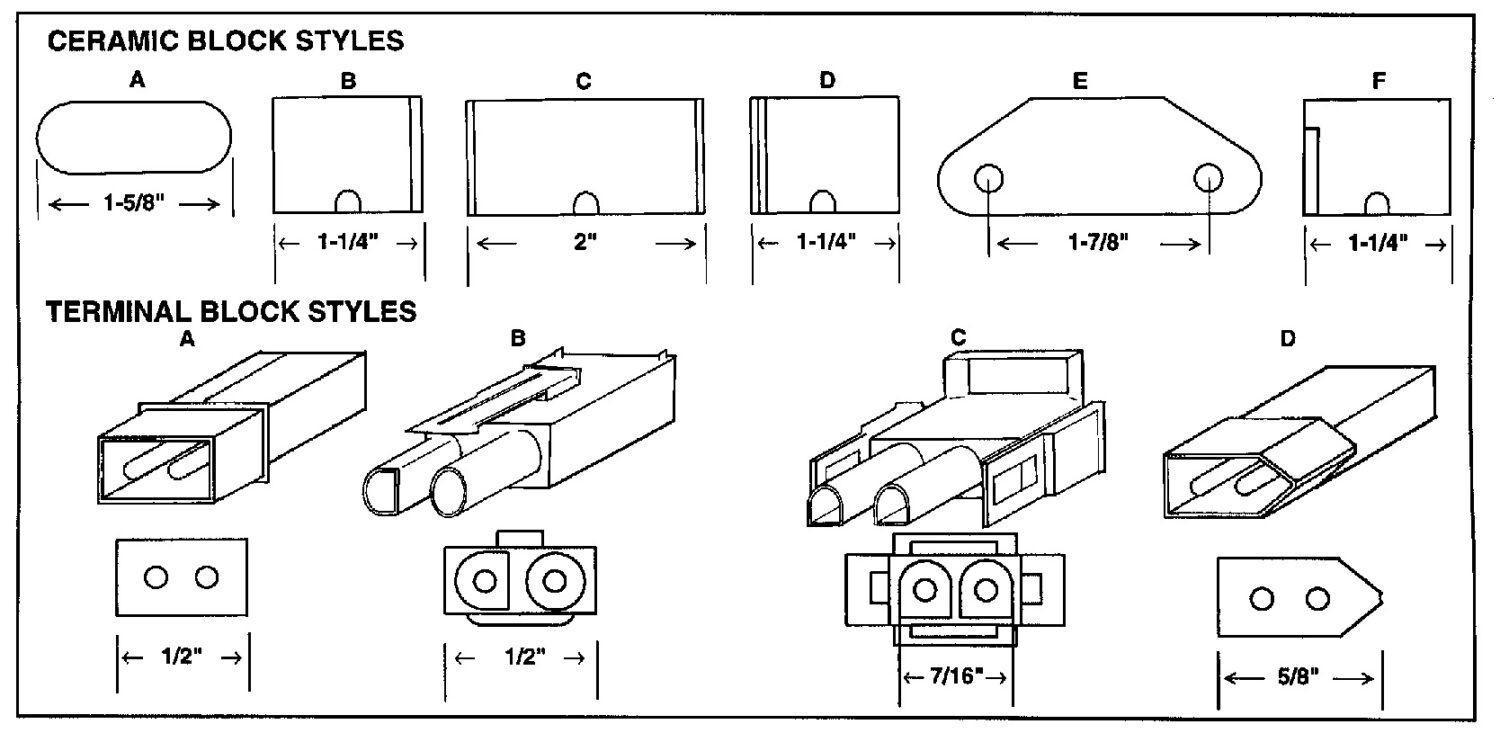

Robertshaw Block Style Guide

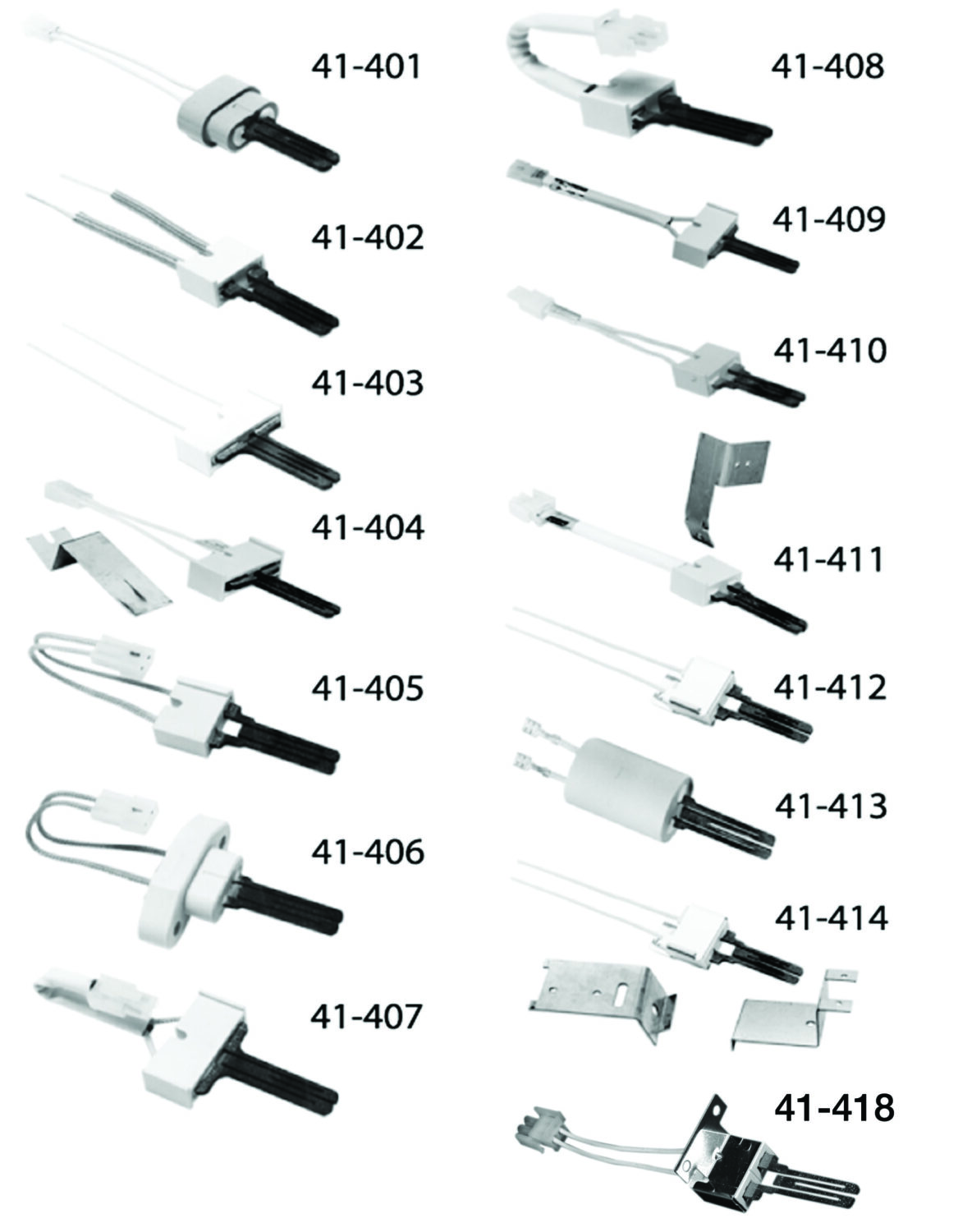

Robertshaw Hot Surface Ignitors

Robertshaw Hot Surface Ignitors Cross Reference
