Description

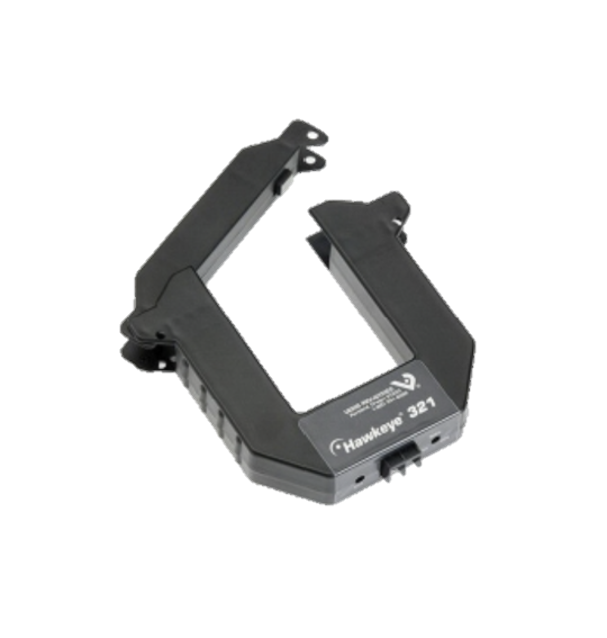

Ensure accurate load monitoring and energy management for large motor circuits with the Veris H321, a loop-powered, analog current transducer designed for building automation systems and industrial applications.
Specifications:
- Current Measurement Accuracy: ±2% of F.S. above 80 A
- Current Measurement Range: 0 – 800 A
- Current Sensor type: Current Transducer, AC
- Electrical Wiring Size: 22 – 12 AWG (0.33 – 3.3 mm²)
- Measurement Type: AC Current
- Monitored Frequency Range: 50 – 60 Hz
- Monitored Wire Size: 2.4″ (61 mm)
- Mounting: Split Core
- Operating Humidity: 10 – 90% RH, non-condensing
- Operating Temperature: 5 – 140 °F (-15 – 60 °C)
- Output Specifications: 4 – 20 mA
- Outputs: Analog output
- Product Certification: UL | CE
- Product Type: Sensor
- Range: High Current Series
- Relay Coil Voltage: None
- Relay Contact Ratings: None
- Relay Poles/Throw: None
