Description

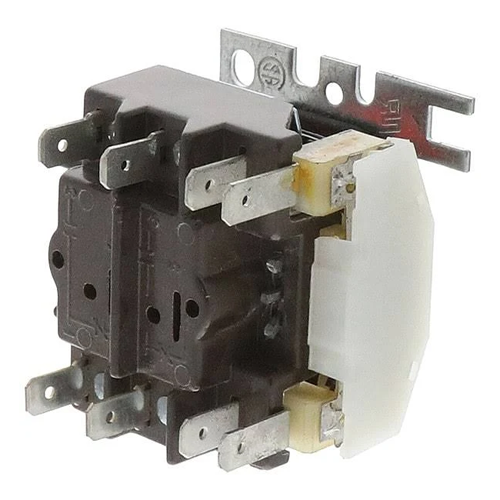

The Honeywell/Resideo R8229A1005 is a dependable, high-performance DPST fan relay designed for controlling line voltage fan motors and auxiliary loads in heating, ventilation, and air conditioning (HVAC) systems. With its 24 Vac coil and double pole, single throw contacts, it’s engineered for precise switching of two circuits simultaneously—ideal for commercial or residential air handlers, blowers, or fan centers.
Features:
- Close and leave load operating in case of wiring or control problem, or relay malfunction.
- Consume no power while load is powered; require power only to shed load.
- Operate directly from a pilot duty rated relay in the load control system.
Specifications:
- Dimensions (in.): 2 3/16 in. high x 2 3/32 in. wide x 2 1/4 in. deep
- Dimensions (mm): 56 mm high x 53 mm wide x 57 mm deep.
- Item Type: Product
- Frequency: 60 Hz
- Approvals, Underwriters Laboratories Inc.: UL Component Recognized
- Approvals, Canadian Standards Association: Recognized
- Electrical Connections: 10 combination head screws
- Temperature Ratings (C): -40 C to +74 C
- Temperature Ratings (F): -40 F to +165 F
- Switching: DPST
- Contact Ratings (AFL): 2.8 A @ 600Vac; 3.5 A @ 480Vac;7.0 A @ 120 Vac, 208 Vac, 240 Vac, 277 Vac
- Contact Ratings (ALR): 14 A @ 600 Vac; 17.5 A @ 480 Vac; 35 A @ 120 Vac, 208 Vac, 240 Vac, 277 Vac
- Contact Ratings (resistive): 10.0 A @ 600 Vac; 12.5 A @480 Vac; 25 A @ 120 Vac, 208 Vac, 240 Vac, 277 Vac
- Coil Ratings Voltage: 24 Vac
