Description

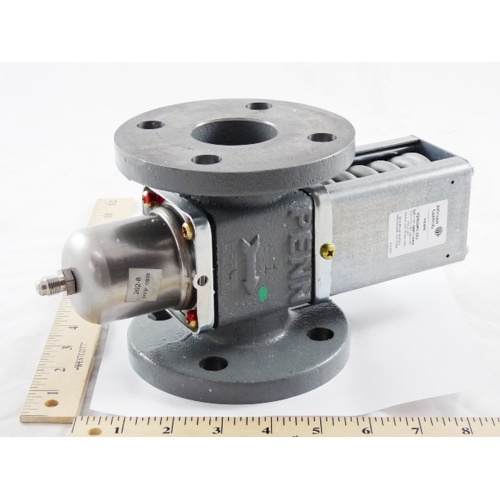

The Johnson Controls V246GR1-001C is a commercial-grade, direct acting, pressure actuated water regulating valve engineered for high-pressure refrigerant applications. Built from durable cast iron, this valve is designed to maintain precise condenser water flow in response to refrigerant head pressure, protecting compressors and optimizing system efficiency.
Key Features
- 1-1/2″ valve size with ASME four hole flange connection for secure, leak-free installation
- 200 to 400 PSI opening point range for reliable operation in high-pressure refrigerant systems
- Commercial type cast iron body for long-lasting durability in demanding environments
- Direct acting, pressure actuated design — no external power source required for operation
- 1/4″ external flare fitting (Style 5) for straightforward refrigerant pressure sensing connection
- Automatically modulates condenser water flow to match system refrigerant head pressure
Application
The V246GR1-001C is ideal for use in commercial HVAC and refrigeration systems where condenser water flow must be regulated in direct response to high-side refrigerant pressure. By throttling water flow based on actual system demand, this valve helps maintain optimal condensing temperatures, reduces water waste, and extends equipment life.
Specifications
- SKU: V246GR1-001C
- Brand: Johnson Controls
- Valve Size: 1-1/2″
- Connection Type: ASME Four Hole Flange
- Opening Point Range: 200 to 400 PSI
- Body Material: Cast Iron
- Valve Type: Direct Acting, Pressure Actuated, Water Regulating
- Application: High-Pressure Refrigerant Systems
- Sensing Fitting: 1/4″ External Flare (Style 5)
- Valve Style: Commercial Type
