Description

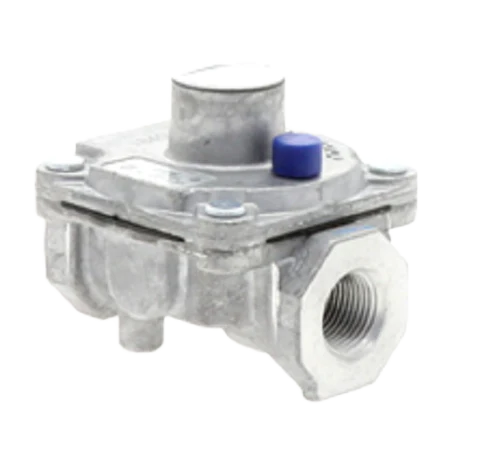

Ensure precise gas flow control and safety with the Maxitrol RV47AL‑3/8″ regulator — engineered for residential and light-commercial burner and pilot systems.
Features:
- These rubber seat poppet type regulators are designed primarily for main burner and pilot load applications where precise control of tiny flows is an essential operating requirement
- Has a short stack – limited spring adjustment
- Included is an integral vent limiting orifice as the breather hole
- Housings are of high strength aluminum die castings
- All models, with the exception of D suffix models, have been tested for multipurpose mounting and may be installed in any plane or angle without restriction
- Suitable for usable with natural, manufactured, mixed, LP, or LP gas-air mixture
Specifications:
- Size: 3/8”
- BTU Capacity (Burner): 125000
- BTU Capacity (Burner and Pilot): 125000
- BTU Capacity (Fixed Orifice): 40000
- Fuel Type: Natural Gas, Propane
- Max Inlet Pressure: 1/2 PSI
